Imperial

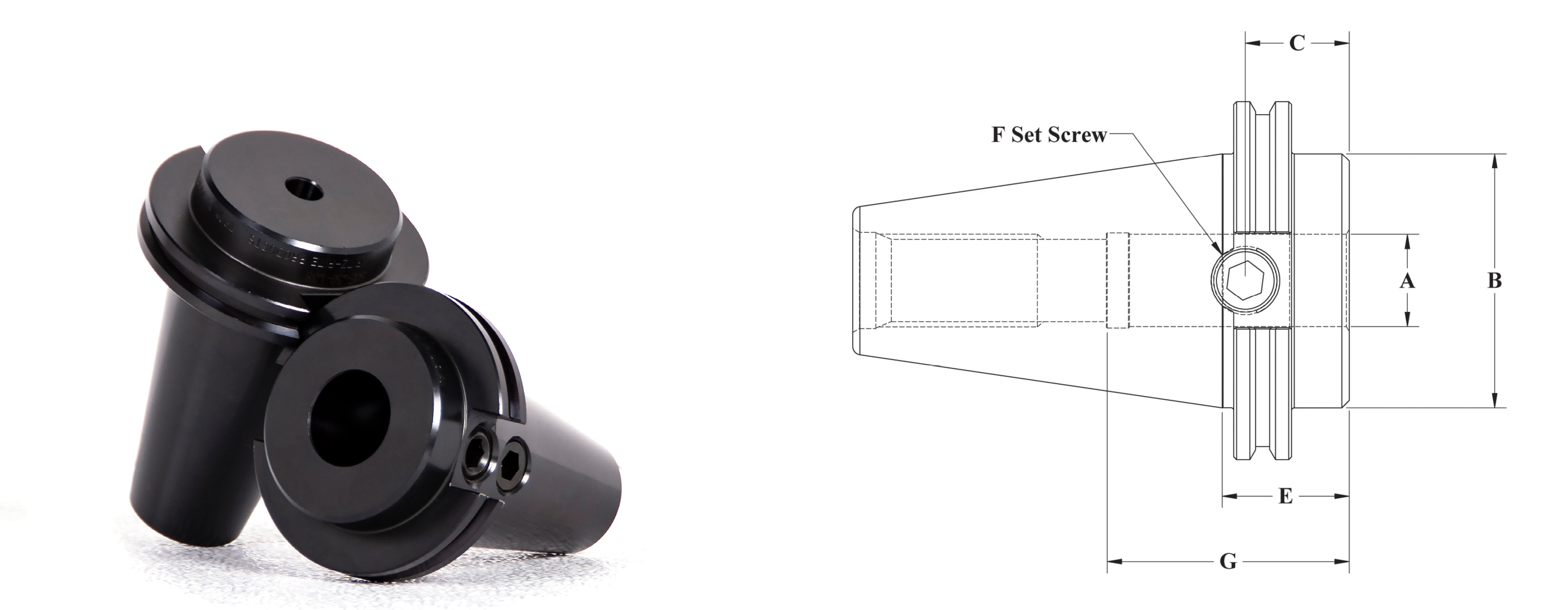

Image Part Number A B C D E F G List Price Qty Add to Cart
50E-.50-1.38 .500 2.75 .940 - 1.38 (1) ⅜-24 THRU $ 127.00
50E-.62-1.38 .625 2.75 .940 - 1.38 (1) ½-20 THRU $ 127.00
50E-.75-1.38 .750 2.75 .940 - 1.38 (1) ⅝-18 THRU $ 127.00
50E-.87-1.38 .875 2.75 .940 - 1.38 (1) ⅝-18 2.25 $ 127.00
50E-1.00-1.38 1.00 2.75 1.130 - 1.38 (1) ¾-16 2.25 $ 127.00
50E-1.25-1.38 1.250 2.75 1.130 1.00 1.38 (2) ¾-16 2.62 $ 127.00
Imperial
Image Part Number A B C D E F G List Price Qty Add to Cart
50E-.12-4 .125 .78 .25 - 4.00 (1) 6-32 THRU $ 129.00
50E-.19-4 .187 .78 .25 - 4.00 (1) 10-32 THRU $ 129.00
50E-.25-4 .250 .78 .25 - 4.00 (1) ¼-28 THRU $ 129.00
50E-.31-4 .312 1.31 .65 - 4.00 (1) ¼-28 THRU $ 129.00
50E-.37-4 .375 1.37 .75 - 4.00 (1) ⅜-24 THRU $ 117.00
50E-.44-4 .437 1.44 .88 - 4.00 (1) ⅜-24 THRU $ 129.00
50E-.50-4 .500 1.50 .88 - 4.00 (1) ⅜-24 THRU $ 117.00
50E-.56-4 .562 1.56 .88 - 4.00 (1) ⅜-24 THRU $ 129.00
50E-.62-4 .625 1.62 .94 - 4.00 (1) ½-20 THRU $ 117.00
50E-.75-4 .750 1.75 1.00 - 4.00 (1) ⅝-18 THRU $ 117.00
50E-.87-4 .875 1.87 1.00 - 4.00 (1) ⅝-18 4.25 $ 117.00
50E-1.00-4 1.00 2.00 1.13 - 4.00 (1) ¾-16 4.50 $ 117.00
50E-1.25-4 1.250 2.25 1.13 1.00 4.00 (2) ¾-16 4.00 $ 117.00
50E-1.50-4 1.500 2.50 1.13 1.00 4.00 (2) ¾-16 5.50 $ 130.00
50E-1.75-4 1.75 2.75 1.13 1.00 4.00 (2) ¾-16 4.50 $ 143.00
50E-2.00-5.25 2.000 3.75 1.41 1.38 5.25 (2) ¾-16 3.50 $ 163.00
50V HOGMASTER 2.000 3.75 1.41 1.38 4.00 (2) ¾-16 3.50 $ 176.00
50E-2.50-4 2.500 3.88 0.95 1.05 4.00 (2) ¾-16 3.50 $ 176.00

Metric
Image Part Number A B C D E F G List Price Qty Add to Cart
50E-6MM-4 6mm .78 .25 - 4.00 (1) 10-32 THRU $ 138.00
50E-8MM-4 8mm 1.31 .65 - 4.00 (1) ¼-28 THRU $ 138.00
50E-10MM-4 10mm 1.39 .75 - 4.00 (1) ⅜-24 THRU $ 138.00
50E-12MM-4 12mm 1.47 .88 - 4.00 (1) ⅜-24 THRU $ 138.00
50E-14MM-4 14mm 1.55 .88 - 4.00 (1) ⅜-24 THRU $ 138.00
50E-16MM-4 16mm 1.62 .94 - 4.00 (1) ½-20 THRU $ 138.00
50E-18MM-4 18mm 1.71 1.00 - 4.00 (1) ⅝-18 THRU $ 138.00
50E-20MM-4 20mm 1.75 1.00 - 4.00 (1) ⅝-18 THRU $ 138.00
50E-25MM-4 25mm 2.00 1.13 - 4.00 (1) ¾-16 4.50 $ 138.00
50E-32MM-4 32mm 2.25 1.13 1.00 4.00 (2) ¾-16 4.00 $ 138.00
Imperial
Image Part Number A B C D E F G List Price Qty Add to Cart
50E-.12-6 .125 .78 .25 - 6.00 (1) 6-32 THRU $ 180.00
50E-.19-6 .187 .78 .25 - 6.00 (1) 10-32 THRU $ 180.00
50E-.25-6 .250 .78 .25 - 6.00 (1) ¼-28 THRU $ 180.00
50E-.25-8 .250 .78 .25 - 8.00 (1) ¼-28 THRU $ 221.00
50E-.31-6 .312 .87 .25 - 6.00 (1) ¼-28 THRU $ 180.00
50E-.31-8 .312 .87 .25 - 8.00 (1) ¼-28 THRU $ 221.00
50E-.37-6 .375 .87 .75 - 6.00 (1) ⅜-24 THRU $ 141.00
50E-.37-8 .375 .87 .75 - 8.00 (1) ⅜-24 THRU $ 179.00
50E-.44-6 .437 .94 .79 - 6.00 (1) ⅜-24 THRU $ 180.00
50E-.50-6 .500 1.00 .79 - 6.00 (1) ⅜-24 THRU $ 141.00
50E-.50-8 .500 1.00 .79 - 8.00 (1) ⅜-24 THRU $ 179.00
50E-.56-6 .562 1.56 .88 - 6.00 (1) ⅜-24 THRU $ 180.00
50E-.62-6 .625 1.62 .94 - 6.00 (1) ½-20 THRU $ 141.00
50E-.62-8 .625 1.62 .94 - 8.00 (1) ½-20 THRU $ 179.00
50E-.75-6 .750 1.75 1.00 - 6.00 (1) ⅝-18 THRU $ 141.00
50E-.75-8 .750 1.75 1.00 - 8.00 (1) ⅝-18 THRU $ 179.00
50E-.87-6 .875 1.87 1.00 - 6.00 (1) ⅝-18 4.25 $ 141.00
50E-1.00-6 1.000 2.00 1.13 - 6.00 (1) ¾-16 4.50 $ 141.00
50E-1.00-8 1.000 2.00 1.13 - 8.00 (1) ¾-16 4.50 $ 179.00
50E-1.25-6 1.250 2.25 1.13 1.00 6.00 (2) ¾-16 4.00 $ 141.00
50E-1.25-8 1.250 2.25 1.13 1.00 8.00 (2) ¾-16 4.00 $ 179.00
50E-1.50-6 1.500 2.50 1.13 1.00 6.00 (2) ¾-16 5.50 $ 182.00
50E-1.50-8 1.500 2.50 1.13 1.00 8.00 (2) ¾-16 5.50 $ 224.00

Metric
Image Part Number A B C D E F G List Price Qty Add to Cart
50E-10MM-6 10mm .87 .75 - 6.00 (1) ⅜-24 THRU $ 173.00
50E-12MM-6 12mm 1.00 .79 - 6.00 (1) ⅜-24 THRU $ 173.00
50E-14MM-6 14mm 1.56 .88 - 6.00 (1) ⅜-24 THRU $ 173.00
50E-16MM-6 16mm 1.62 .94 - 6.00 (1) ½-20 THRU $ 173.00
50E-20MM-6 20mm 1.78 1.00 - 6.00 (1) ⅝-18 THRU $ 173.00
50E-25MM-6 25mm 2.00 1.13 - 6.00 (1) ¾-16 4.50 $ 173.00
